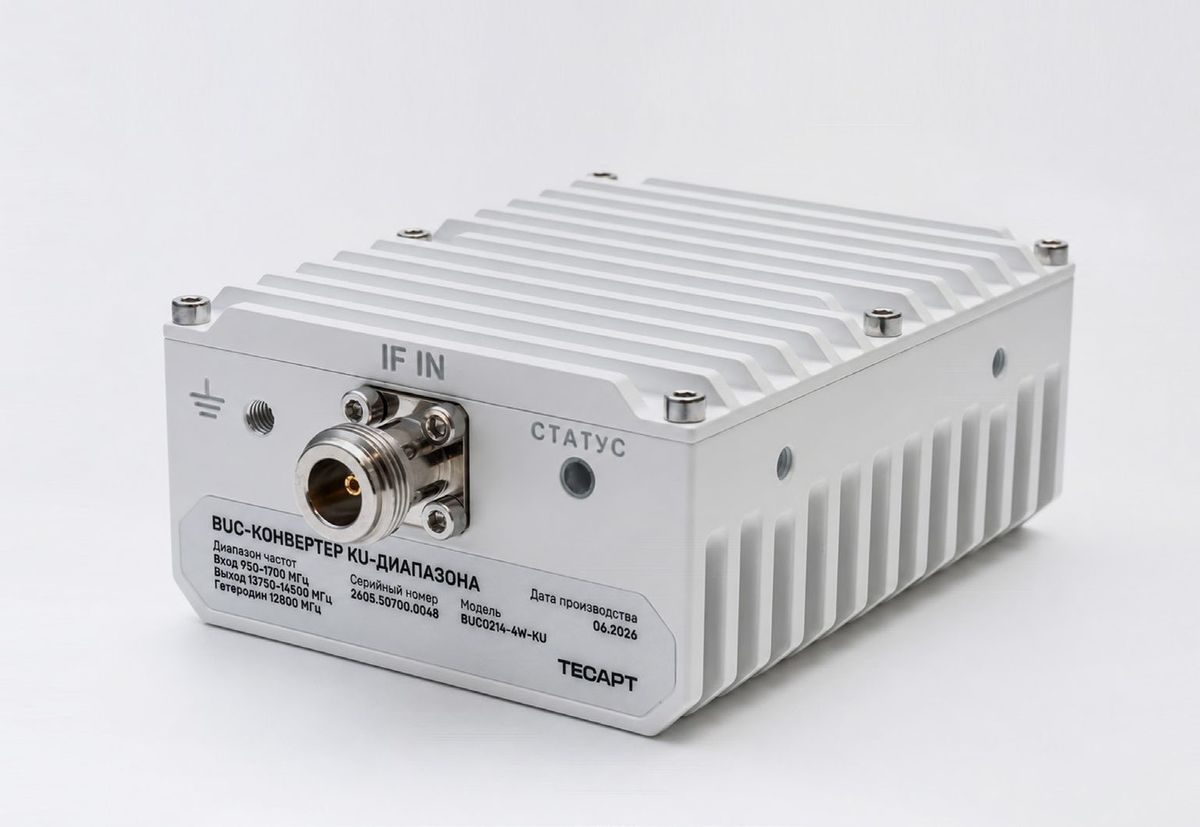

Ku-band BUC
Compact outdoor block upconverter for Extended Ku-band uplinks — 1 kg, WR-75 output, 13–26 VDC.
Ku
MAS series · Ku-band
In developmentMAS Flat-Panel Terminal
Electronically steered flat-panel Ku-band antenna system for GEO connectivity on the move.
Overview
The electronically steered flat antenna opens new possibilities for mobile and fixed satellite communications via geostationary satellites. With a phased array and fully electronic beam steering it provides reliable connectivity on the move — on trains, ships and road vehicles — and at fixed sites. Ka-band version in development.
Key features
Low-profile housing that does not disturb vehicle aerodynamics
Works with standard Ku-band GEO satellite networks
Automatic satellite tracking while moving
No moving parts, high reliability
Dual-beam operation (two satellites at once)
Lightweight design and fast deployment
Optimized power consumption
Model comparison
| Parameter | MAS-0101 | MAS-0102 | MAS-0104 | MAS-0204 | MAS-0208 |
|---|---|---|---|---|---|
| Receive data rate, Mbps | 1 | 1 | 1 | 3 | 3 |
| Transmit data rate, Mbps | 0.5 | 1 | 3.5 | 3.5 | 6 |
| Transmit frequency, GHz | 13.75–14.5 | 13.75–14.5 | 13.75–14.5 | 13.75–14.5 | 13.75–14.5 |
| Receive frequency, GHz | 10.7–12.7 | 10.7–12.7 | 10.7–12.7 | 10.7–12.7 | 10.7–12.7 |
| Polarization | Circular, linear | Circular, linear | Circular, linear | Circular, linear | Circular, linear |
| G/T ¹, dB/K | 4.5 | 4.5 | 4.5 | 6.5 | 6.5 |
| EIRP ¹, dBW | 39 | 39 | 47 | 47 | 51.7 |
| Transmit array, mm | 240 × 416 | 240 × 416 | 480 × 832 | 480 × 832 | 960 × 832 |
| Receive array, mm | 276 × 449 | 276 × 449 | 276 × 449 | 276 × 898 | 276 × 898 |
| Overall dimensions, mm | 630 × 500 | 630 × 500 | 866 × 900 | 866 × 950 | 1350 × 950 |
¹ At 60° scan angle, 15° elevation. Preliminary specifications — product in development; specifications subject to change without notice.
